Precision Deep Draw Metal Forming: Made in the USA
Buckeye Shapeform is a recognized leader in deep draw manufacturing, delivering highly calibrated components with tight tolerances, sealable finishes, and up to a 20:1 form ratio reaching 10 inches in diameter by 6 feet in length. Our in-house deep draw process–including our unique seamless drawn tubing capability–provides a cost-effective and reliable alternative to impact extrusion and metal spinning, producing parts with minimal weight and uncompromised strength, greater accuracy, and less waste.
Why Choose Buckeye Shapeform for Deep Draw Metal Stamping
Tight Tolerances
Our deep draw metal forming process achieves geometrical positional tolerances of 0.003/inch, delivering highly calibrated components for the precision your mission-critical applications demand.
Sealable Surface Finishes
We achieve surface roughness of 63 microinches or less, eliminating the need for secondary operations and enabling direct gasket sealing during final assembly.
Multi-Thickness Capability
Our deep draw process accommodates variable wall thickness within a single part, increasing structural strength where it's needed most without adding unnecessary weight.
Advanced 3D Scanning & Quality Control
Every part is 3D scanned for dimensional verification, ensuring zero defects and consistent quality across every production run.
Seamless Drawn Tubing
We can draw a single piece of material to significant depth without welding or joining–a capability many manufacturers simply don't have. This produces components with superior structural integrity and consistency for applications where performance and reliability are critical.

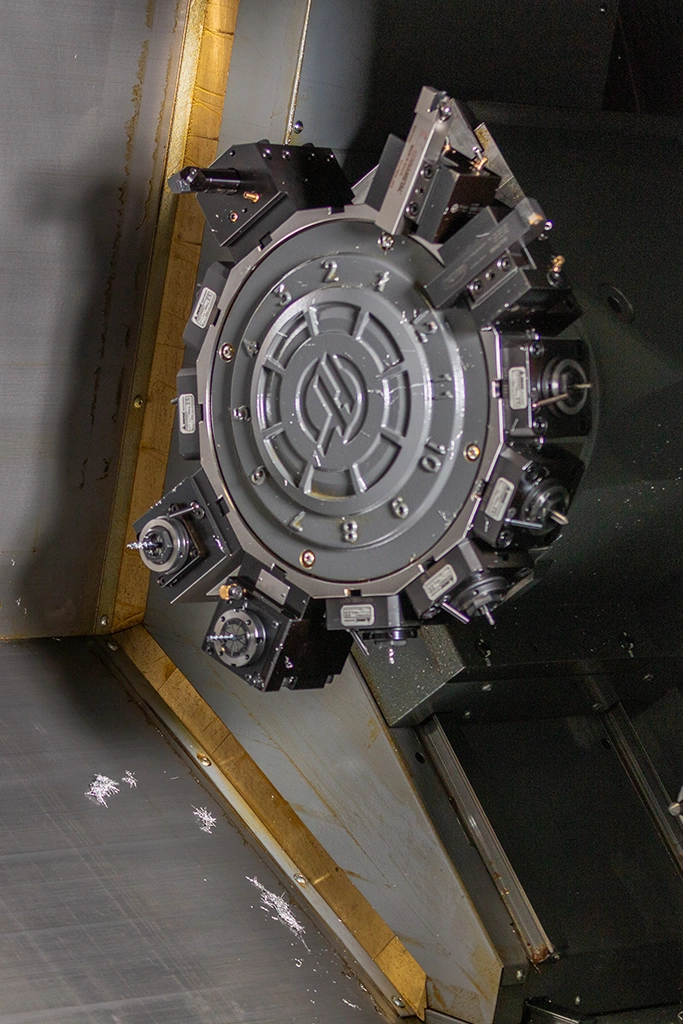

Complete In-House Manufacturing
From tooling through finishing, our entire deep draw manufacturing process is handled under one roof in our Columbus, Ohio, facility, ensuring precision, quality control, and reliable on-time delivery.
Made in the USA
All deep draw components are manufactured in the United States, adhering to the highest industry standards backed by over 112 years of craftsmanship.
Can't find what you need?
We Can Help.
Our Deep Draw Process
1.
Submit Your Requirements
Share your part specifications, drawings, or models with our team. We can work from detailed engineering drawings or hand sketches–the more information you provide, the better we can optimize your part for the deep draw process.
2.
Engineering Review & Tooling Assessment
Our engineering team reviews your part requirements and designs custom D2 steel tooling specific to your application. Because all tooling is custom-built from scratch, this is a critical front-end step. We work closely with you to assess feasibility, set expectations on tooling investment and lead time, and ensure your part will perform correctly before production begins.
3.

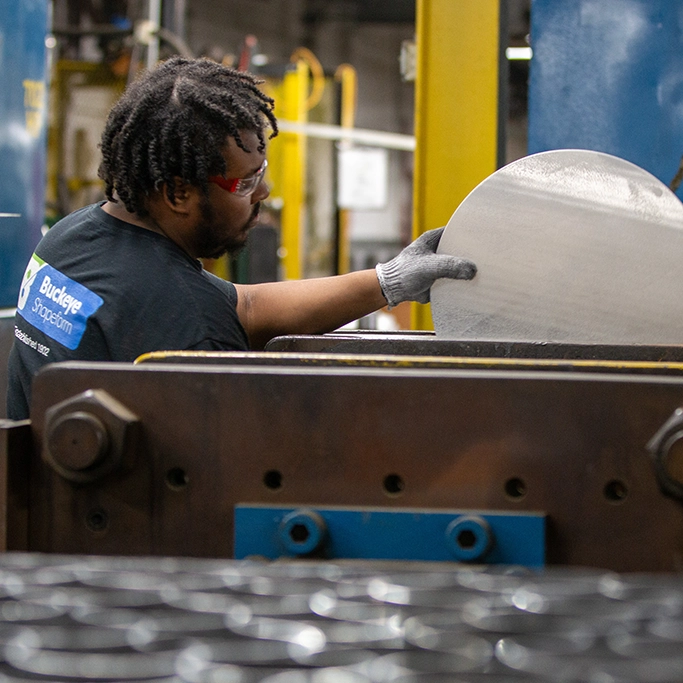

Deep Draw Metal Stamping
Using our precision deep draw equipment, we form your parts from flat sheet stock into finished components, achieving complex geometries, tight tolerances, and variable wall thicknesses in a single operation that would otherwise require multiple manufacturing steps.
4.
3D Scanning & Quality Verification
Every part is 3D scanned to verify dimensional accuracy against your specifications. Our zero-defect standard means parts are inspected throughout production, not just at the end.
5.
Finishing & Delivery
Deep draw parts typically receive a chem coat–a chemical conversion coating applied via a third-party dip process that treats the aluminum for corrosion resistance. Paint operations are also available depending on your application requirements. After finishing, parts are inspected and shipped ready for your assembly or end-use application.
Seamless Drawn Tubing
One of Buckeye Shapeform’s most distinctive capabilities is our ability to produce seamless drawn tubing–drawing a single piece of material to significant depth without welding or joining. Many manufacturers lack this capability and are forced to weld sections together, creating potential weak points and inconsistencies. Our process produces a single, seamless component from start to finish, delivering superior structural integrity and consistency for applications where performance and reliability are critical.
Industries We Serve
Buckeye Shapeform’s deep draw capabilities serve demanding applications across multiple industries:
- Military & Defense: Mission-critical components requiring tight tolerances, zero defects, and USA manufacturing.
- Aerospace: Lightweight, high-strength aluminum components with precise dimensional accuracy.
- Automotive: High-volume deep draw metal stamping for vehicle components and electronics housings.
- Industrial & Manufacturing: Durable formed components for equipment, instrumentation, and process control.
- Electronics & Technology Aluminum deep draw parts that reduce vibration and provide EMI shielding for sensitive hardware.
Frequently Asked Questions About Deep Draw Metal Forming
What is deep draw metal forming?
Deep draw is a stamping process in which flat sheet metal is drawn into a die to form a three-dimensional shape. Unlike cutting or machining, which remove material, deep draw forms the part by reshaping the metal, preserving material strength while achieving complex geometries, tight tolerances, and seamless construction in a single operation.
What materials can be used in deep draw manufacturing?
Buckeye Shapeform works with a range of metals for deep draw manufacturing, including aluminum, steel, and other alloys, depending on your application requirements. Aluminum is a particularly popular choice for deep draw metal forming for several reasons.
First, aluminum offers three times the effective product yield compared to steel, meaning you get more material output with less waste–achieving minimal weight without compromising strength. Second, the deep draw process creates strong, ductile components with a uniform grain structure that provides flexible hardness, effectively reducing vibrations. This makes aluminum deep draw parts especially well-suited for electronics and technology-based hardware where both weight and vibration control are critical.
What tolerances can you hold in deep draw metal stamping?
Our deep draw metal stamping process achieves geometrical positional tolerances of 0.003/inch with surface roughness of 63 microinches or less. This level of precision eliminates the need for many secondary finishing operations and allows for direct gasket sealing during final assembly.
What is the maximum form ratio you can achieve?
We can achieve up to a 20:1 form ratio in our deep draw process, reaching 10 inches in diameter by 6 feet in length. This allows for deep, complex part geometries that would be difficult or impossible to achieve through alternative forming methods.
What are the advantages of deep draw over impact extrusion or metal spinning?
Deep draw offers significant advantages over alternative forming methods like impact extrusion and metal spinning, including lower per-unit cost at production volumes due to faster cycle times and less material waste, higher accuracy with tighter tolerances, seamless construction that eliminates weak points and leak paths, variable wall thickness within a single operation to increase strength without adding weight, and sealable finishes achieved directly from the forming process that reduce secondary operations.
What are your production run capabilities for deep draw?
Deep draw manufacturing is optimized for higher production volumes–most customers run thousands of parts annually per program. There is no formal minimum order quantity, but because all tooling is custom-built for each part, the tooling investment is amortized across your production run. The higher the volume, the more cost-effective the per-unit price becomes. For customers comparing deep draw to alternatives like machining, the cost advantage at volume is significant–parts that would cost hundreds of thousands of dollars to machine can be produced far more economically through our deep draw process once tooling is established.
